DST Arc Series
Same body. Same reader.
Only the wiring changes.
Three models on one platform. Pick by how the door is wired: to a panel, to a serial line, or to the network.
Arc-100
The panel reader.
For doors already wired to a controller. Wiegand out, nothing else to configure — the lowest-cost way to put a DST reader on an existing system.
- Wiegand — Fitted
- RS-485 — Not fitted
- Ethernet — Not fitted
- Wi-Fi — Not fitted
Arc-200
The serial reader.
Wiegand plus RS-485 on the same unit. Run several readers on one line over long distances, or keep Wiegand as the fallback.
- Wiegand — Fitted
- RS-485 — Fitted
- Ethernet — Not fitted
- Wi-Fi — Not fitted
Arc-500
The network reader.
Ethernet and Wi-Fi on top of RS-485 and Wiegand. Manage it centrally, drive the lock from its own relay, or hand it to a panel — the same unit does all of it.
- Wiegand — Fitted
- RS-485 — Fitted
- Ethernet — Fitted
- Wi-Fi — Fitted

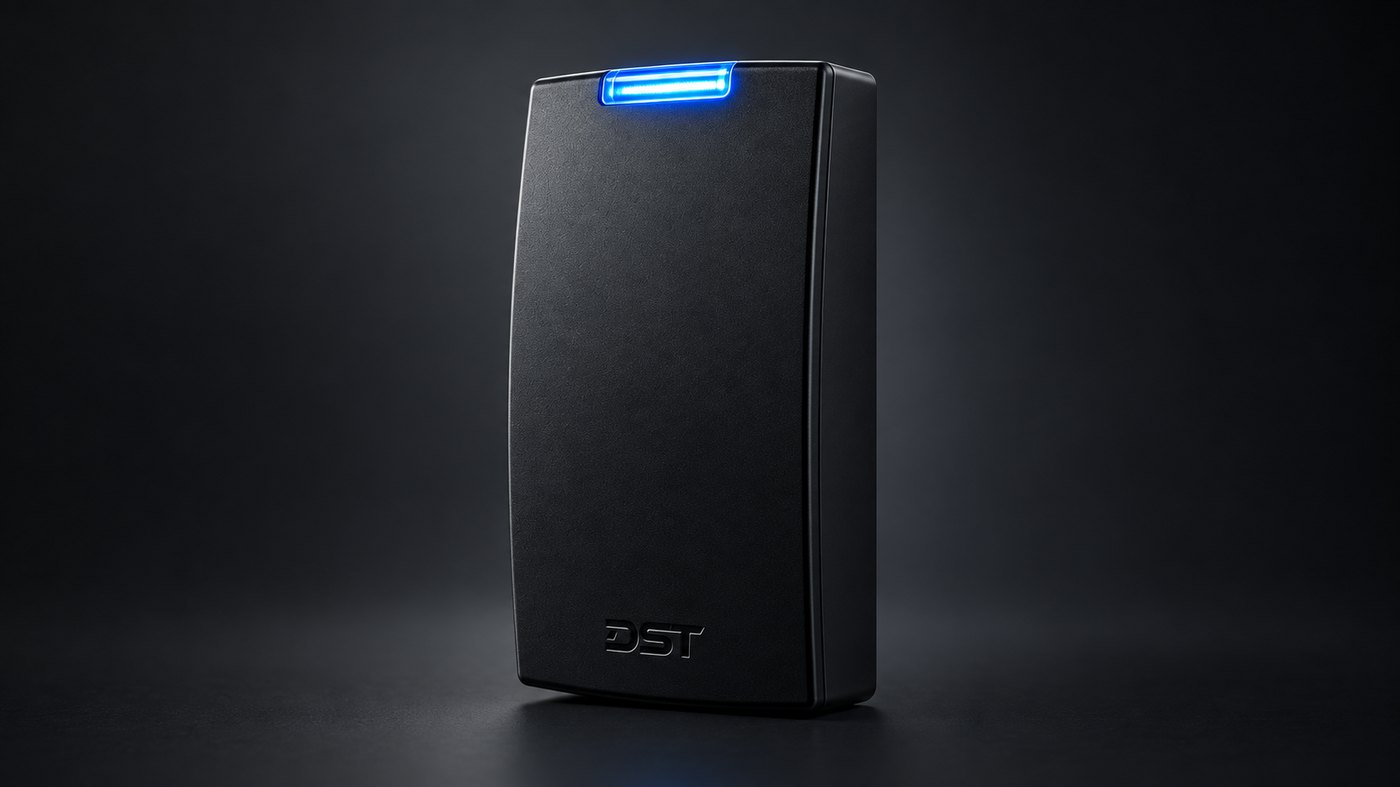

The product
An IP card reader that
speaks every line you already run.
Access hardware usually forces a choice: a networked reader, or one that talks to the panel you already own. This one does not ask.
Four ways to connect
Ethernet, Wi-Fi, Wiegand and RS-485 in one reader. Retrofit it onto an existing panel over Wiegand, or run it over the network — the same unit does both, with no adapter in between.
- Ethernet
- 10/100 Mbps
- Wireless
- Wi-Fi 2.4 GHz
- Serial
- RS-485 · Wiegand
- Isolation
- Opto-isolated
Reads what is already in the field
A dual-frequency (13.56 MHz + 125 kHz) multi-protocol reader, so an installed base of credentials keeps working. The antenna is built into the reader itself, not a bolted-on module.
- Standards
- ISO 14443 A/B · 15693 · 18092
- Also
- FeliCa · MIFARE
- Frequency
- 13.56 MHz / 125 kHz
- Antenna
- Built-in
Sealed, not assembled
Potted in epoxy inside the enclosure with no internal connectors — the cable is terminated directly. There is no plug to work loose in a door frame that slams a hundred times a day.
- Enclosure
- 48.3 × 102.7 × 20.8 mm
- Mounting
- Surface
- Operating range
- −20 °C … +65 °C
- Supply
- 12 V DC
Key Features
Free to connect. Compact by design.
Ethernet · Wi-Fi · Bluetooth
Networked on the Arc-500
Status LED
RGB status LED and buzzer
13.56 MHz · 125 kHz
MIFARE · FeliCa · ISO 14443 A/B · ISO 15693 · 125 kHz proximity
Sealed
Potted electronics, nothing to work loose
Wiegand · RS-485
Compatible with all standard panels
−20 … +65 °C
Operating temperature
Ethernet · Wi-Fi · Bluetooth
Networked on the Arc-500
Status LED
RGB status LED and buzzer
13.56 MHz · 125 kHz
MIFARE · FeliCa · ISO 14443 A/B · ISO 15693 · 125 kHz proximity
Wiegand · RS-485
Compatible with all standard panels
Sealed
Potted electronics, nothing to work loose
−20 … +65 °C
Operating temperature
Specifications
The full sheet,
on the page.
Laid out the way you compare readers. Values not measured yet are marked, not guessed.
Credential
- RF frequency
- 13.56 MHz / 125 kHz
- Card types
- MIFARE · FeliCa · ISO 14443 A/B · ISO 15693 · ISO 18092
- Antenna
- Built-in, reading face
- Read range
- Pending measurement
- Mobile credential
- Not supported
Interface
- Ethernet
- 10/100 Mbps
- Wi-Fi
- 2.4 GHz
- Wiegand
- Output, opto-isolated
- RS-485
- 1 channel
- PoE
- Not supported
Inputs & outputs
- Inputs
- 3 × opto-isolated
- Relay
- 1 × on-board
- LED
- Multi-colour status LED
- Sound
- Buzzer
- Clock
- Battery-backed real-time clock
Electrical
- Power supply
- 12 V DC
- Protection
- Reverse polarity, resettable fuse
- Power consumption
- Pending measurement
Environmental
- Operating temperature
- −20 °C to +65 °C
- Ingress protection
- Pending measurement
Mechanical
- Dimensions (W × H × D)
- 48.3 × 102.7 × 20.8 mm
- Installation
- Surface mount
- Sealing
- Epoxy-potted, no connectors — direct cable termination
- Weight
- Pending measurement
Compliance
- Certifications
- Pending measurement
