DST Arc Series

Compact by design. Built for seamless access.

Ethernet, Wi-Fi, Bluetooth, RS-485 and Wiegand connectivity in a compact form, built for fast installation and secure access.

Key Features

Free to connect. Compact by design.

Ethernet · Wi-Fi · Bluetooth
Networked on the Arc-500
Status LED
RGB status LED and buzzer
13.56 MHz · 125 kHz
MIFARE · FeliCa · ISO 14443 A/B · ISO 15693 · 125 kHz proximity
Sealed
Potted electronics, nothing to work loose
Wiegand · RS-485
Compatible with all standard panels
−20 … +65 °C
Operating temperature

Ethernet · Wi-Fi · Bluetooth
Networked on the Arc-500
Status LED
RGB status LED and buzzer
13.56 MHz · 125 kHz
MIFARE · FeliCa · ISO 14443 A/B · ISO 15693 · 125 kHz proximity
Wiegand · RS-485
Compatible with all standard panels
Sealed
Potted electronics, nothing to work loose
−20 … +65 °C
Operating temperature

Dual-frequency, multi-card RFID reader
One Arc reads both low-frequency 125 kHz and high-frequency 13.56 MHz credentials. EM, MIFARE, MIFARE Plus, DESFire, DESFire EV1 and FeliCa cards work on the same reader, so the cards already in circulation keep working while new ones are rolled out.

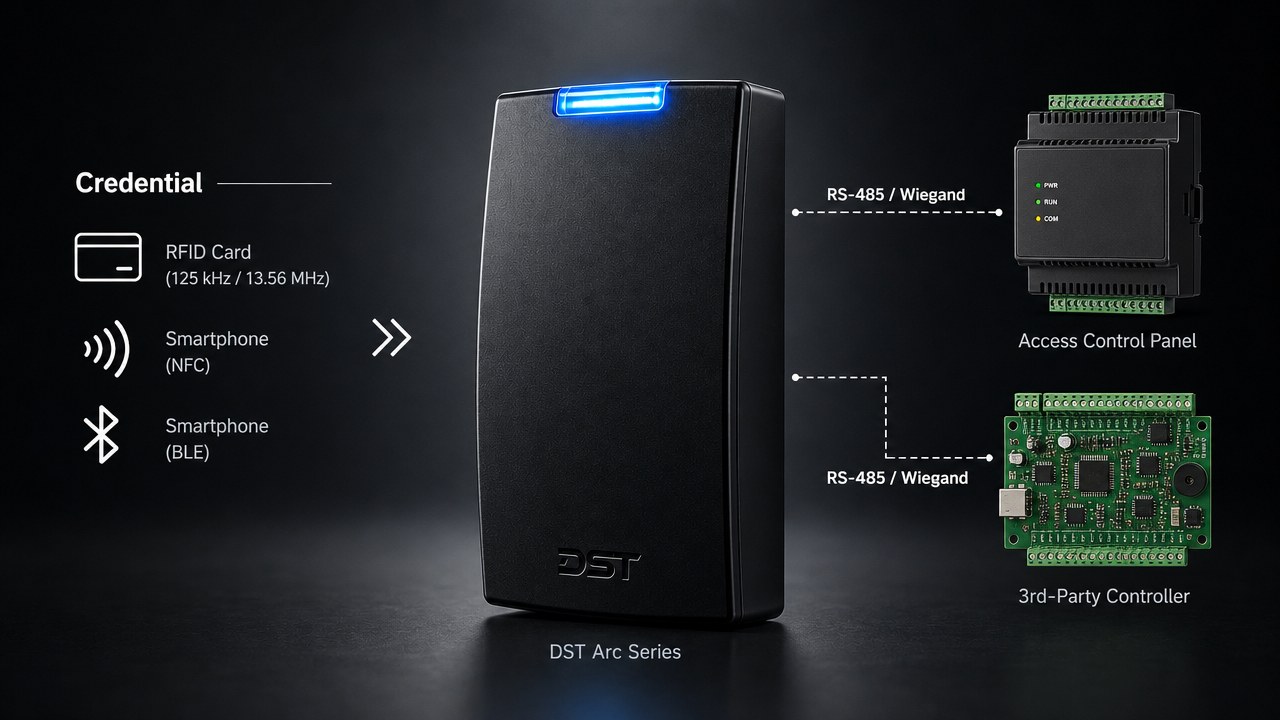

Connects to the panel you already have
The Arc brings card, NFC and BLE credentials into one reader and passes each read to the controller over RS-485 or Wiegand. It works with access control panels and third-party controllers alike; existing wiring stays as it is.
Secure reader-to-controller link: OSDP
The Arc speaks Open Supervised Device Protocol (OSDP), the open industry standard for connecting readers to controllers over RS-485. Unlike the one-way, unencrypted Wiegand line, OSDP is bidirectional, encrypted and continuously supervised.
- EncryptedSecure Channel with AES-128
- Two-wayThe controller drives the LED and buzzer and reads reader status
- SupervisedA cut or tampered line is reported to the controller

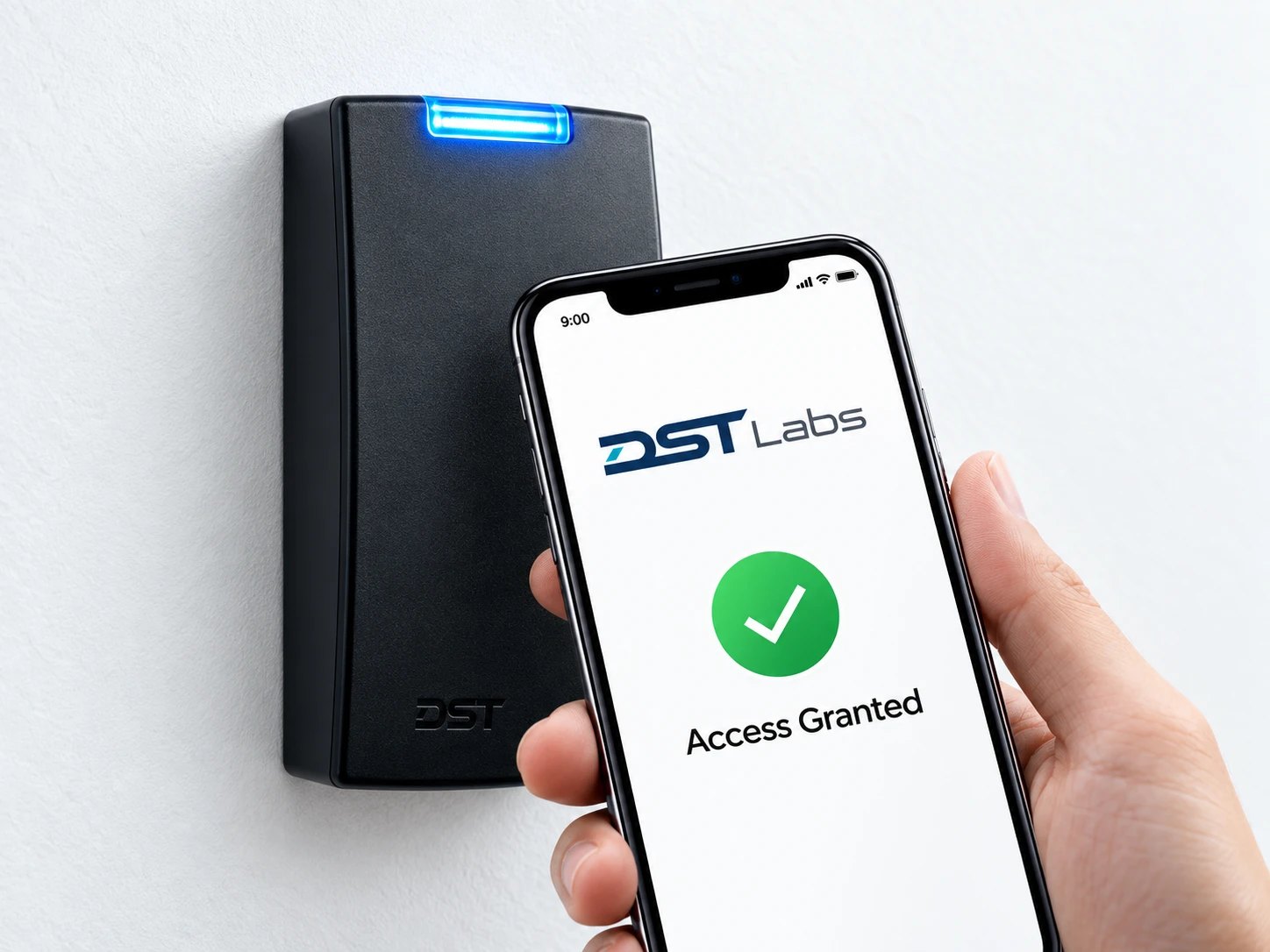

Your phone is the key
No card needed: the Arc reads mobile credentials over Bluetooth and NFC. Every exchange is AES-encrypted.
- BLEBluetooth Low Energy on Android and iOS
- NFCHCE on Android, supported by most current phones

Where it runs

The hardware changes at the edges. What stays the same is how it is designed: for installers who have to make it work on a site that already exists.

Contact

Tell us about the site, the panel you run and what you need the reader to do. An engineer replies — not a sales queue.
